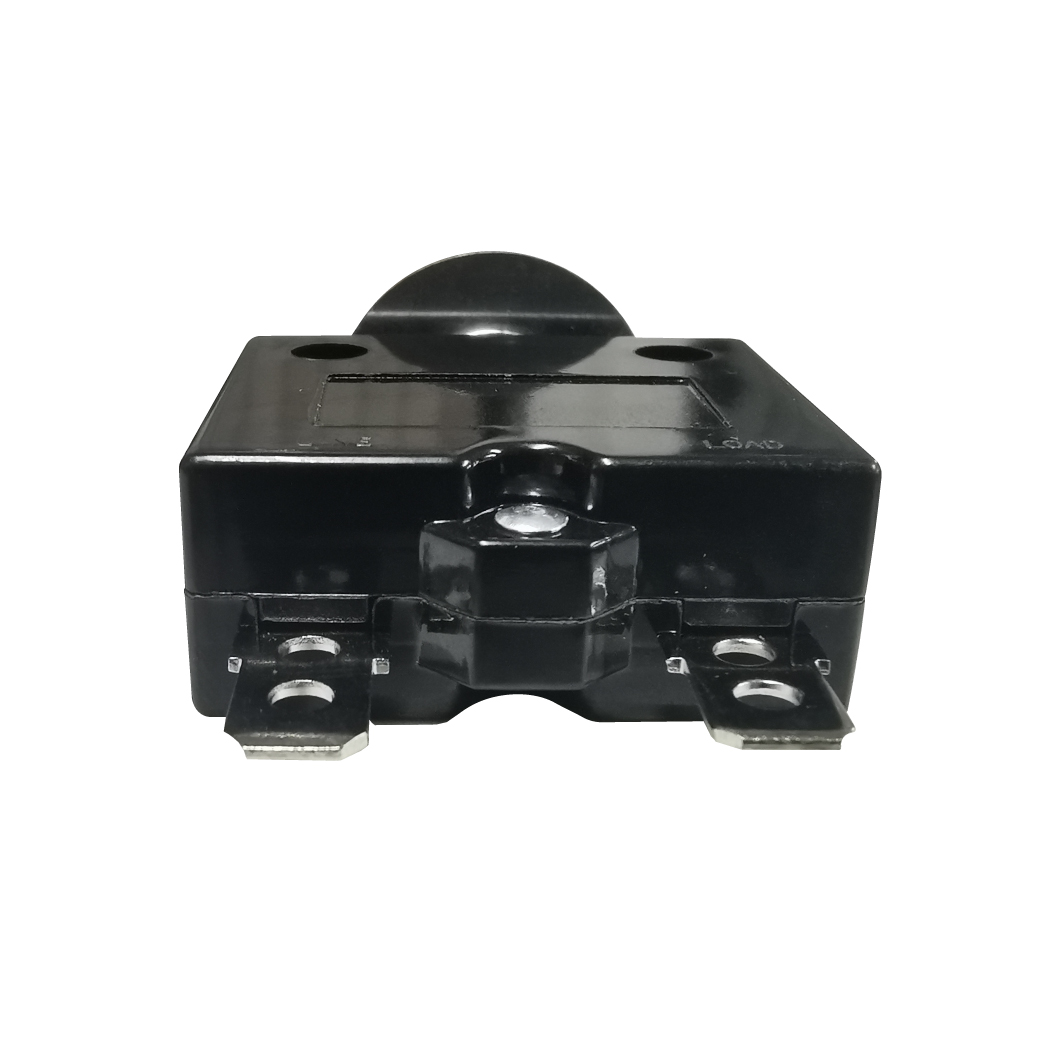

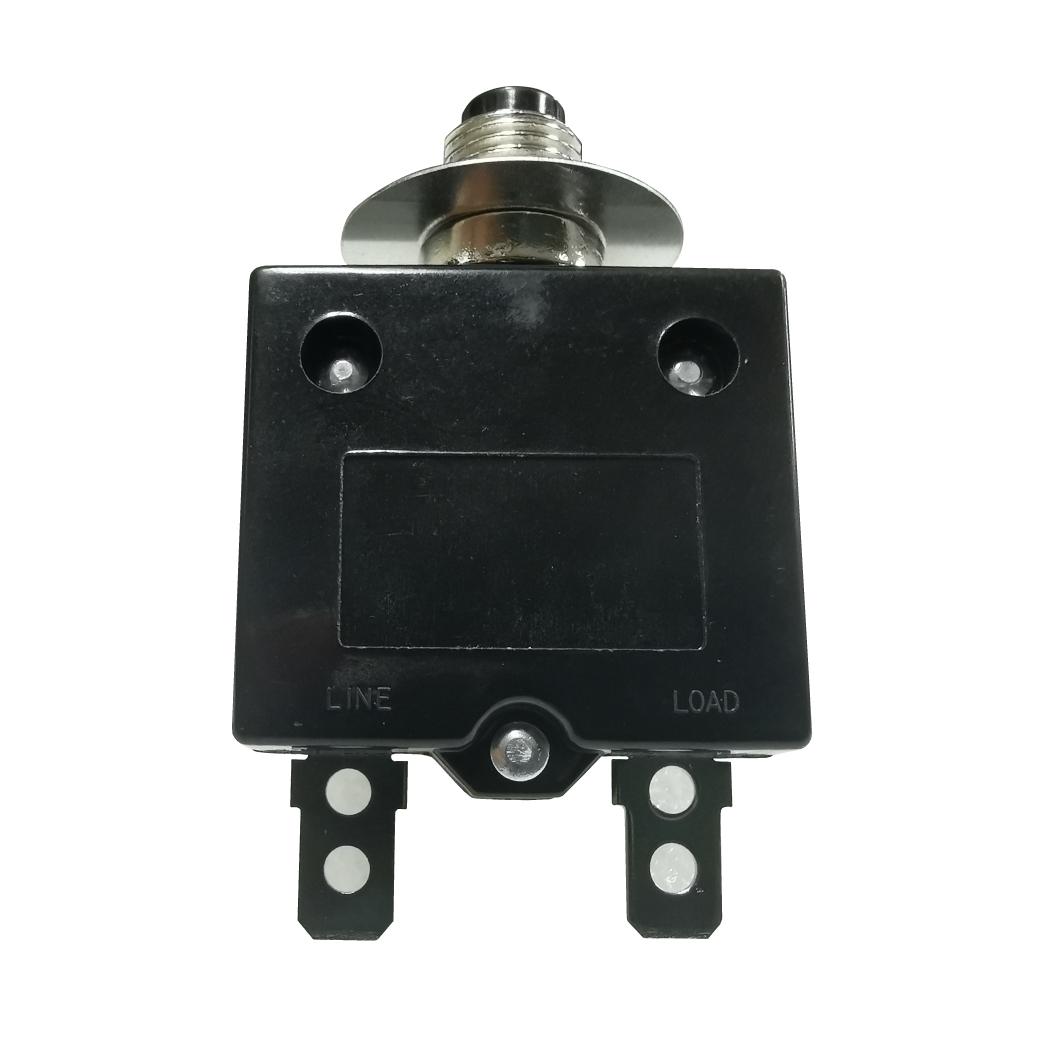

Thermal Circuit Breaker

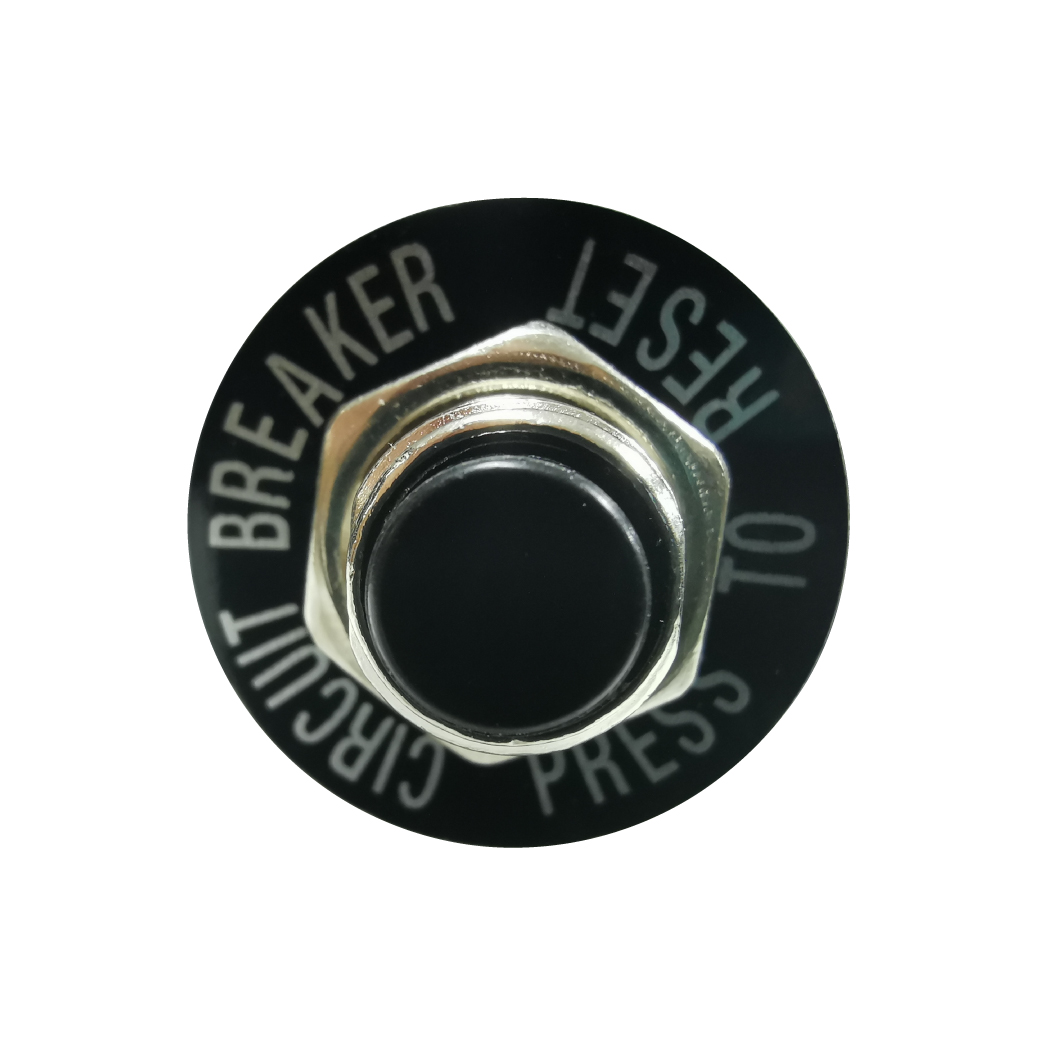

Single Pust to reset

Technical Data

• Current rating range : 20A
• Input voltage rating : 250vac
• Interrupting Capacity : 250vac x 1,000A(UL1077)
• Typical life : 1,000 operations at 200% overload.
• Insulation co-ordination : Rate impluse withstand voltage 2.5kV
• Dieletric Strength : >1,500VAC/min.
• Insulation Resistance : 100MOHM (DC 500V)
• Degee of protection : Terminal area IP00, operating area IP40

Mechanical/Environmental Data

• Operating Ambient Tempetature : -10 ํC to +60 ํC
• Termination : 250" (6.35mm) quick connects to solder terminals
• Mounting : Various option. See Ordering Information and drawings

Compliance with Rohs

The product accord with the requirement of ROHS(2011/65/EU) Contacts use Exempted item of RoSH Directive 2010/571/EU 8(a)

Compliance with REACH, PAHS, PH1, PH2, PH3

• Ignition Proof  Yes, UL PEQZ2.E155159

Typical applications

Tarnsforms, Motors, Battery Chargers, Power supplies, appliances, extra low voltage system, machinery.

Calibration (at25 ํC)

• 100% of Rated Current : Hold, No Trip
• 150% of Rated Current : Trip Within 1 Hour.
• 200% of Rated Current : 5-30 sec Trip
• 300% of Rated Current : 1.5-5.0 sec Trip

Max.Internal Resistance

APPROVAL & File No.

CUL UL E155159, TUV SUD B15 09 58611 007, CCC 201101030752058
