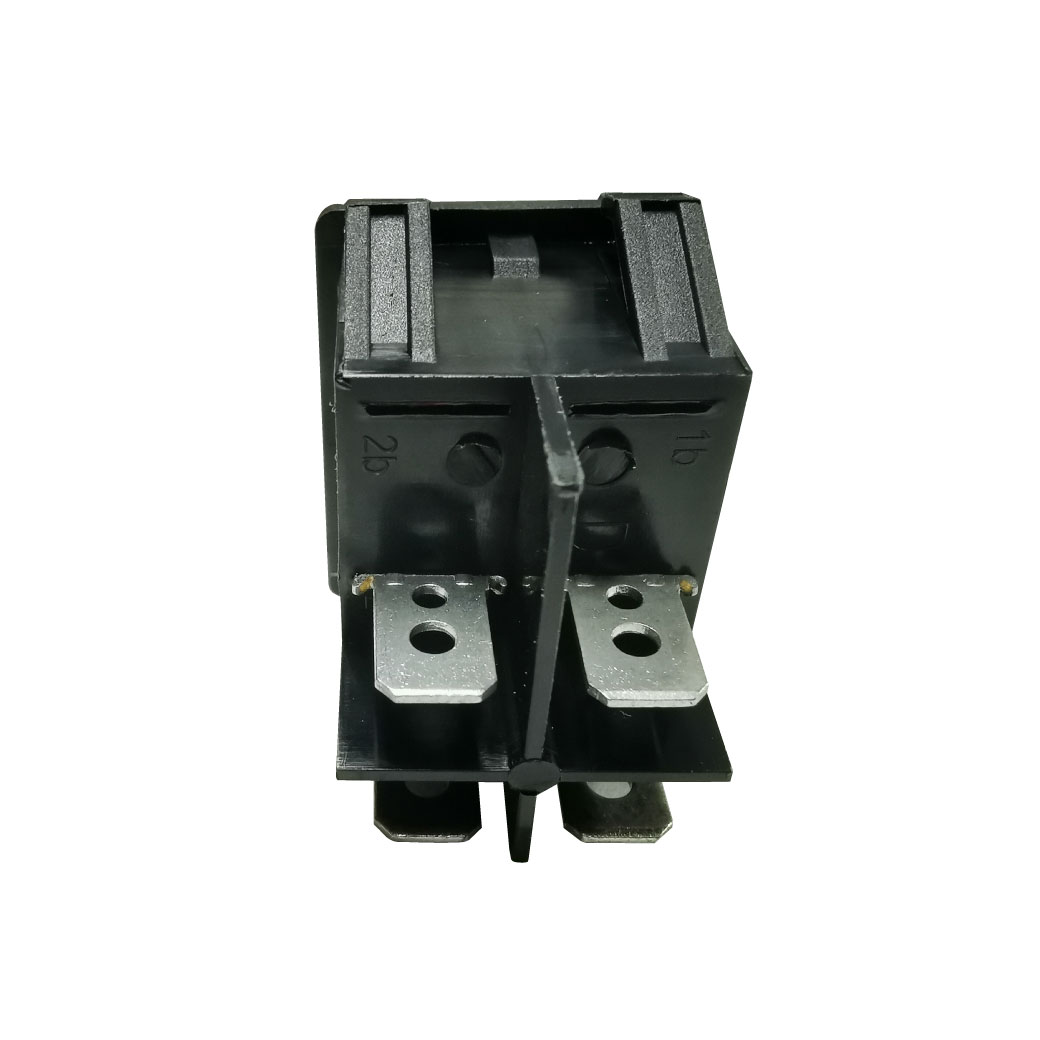

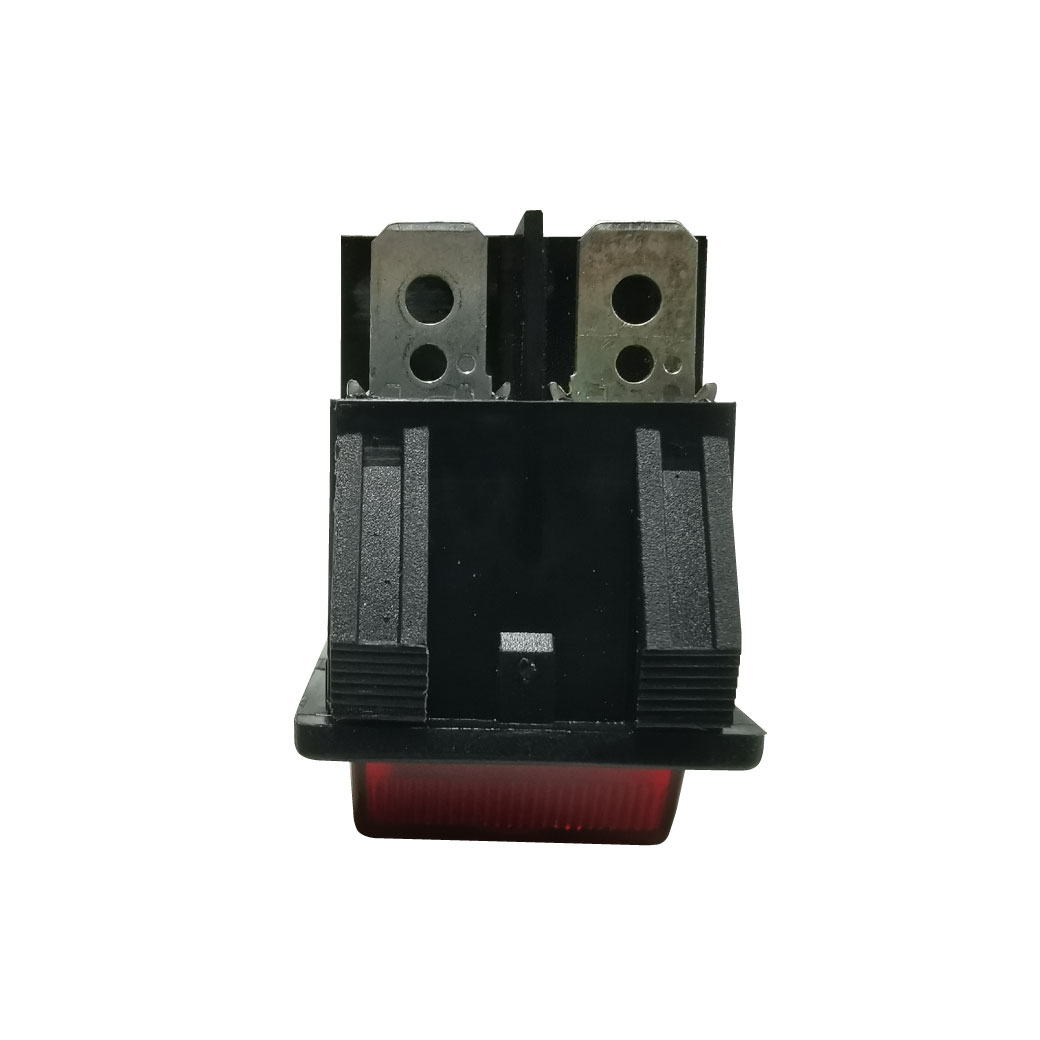

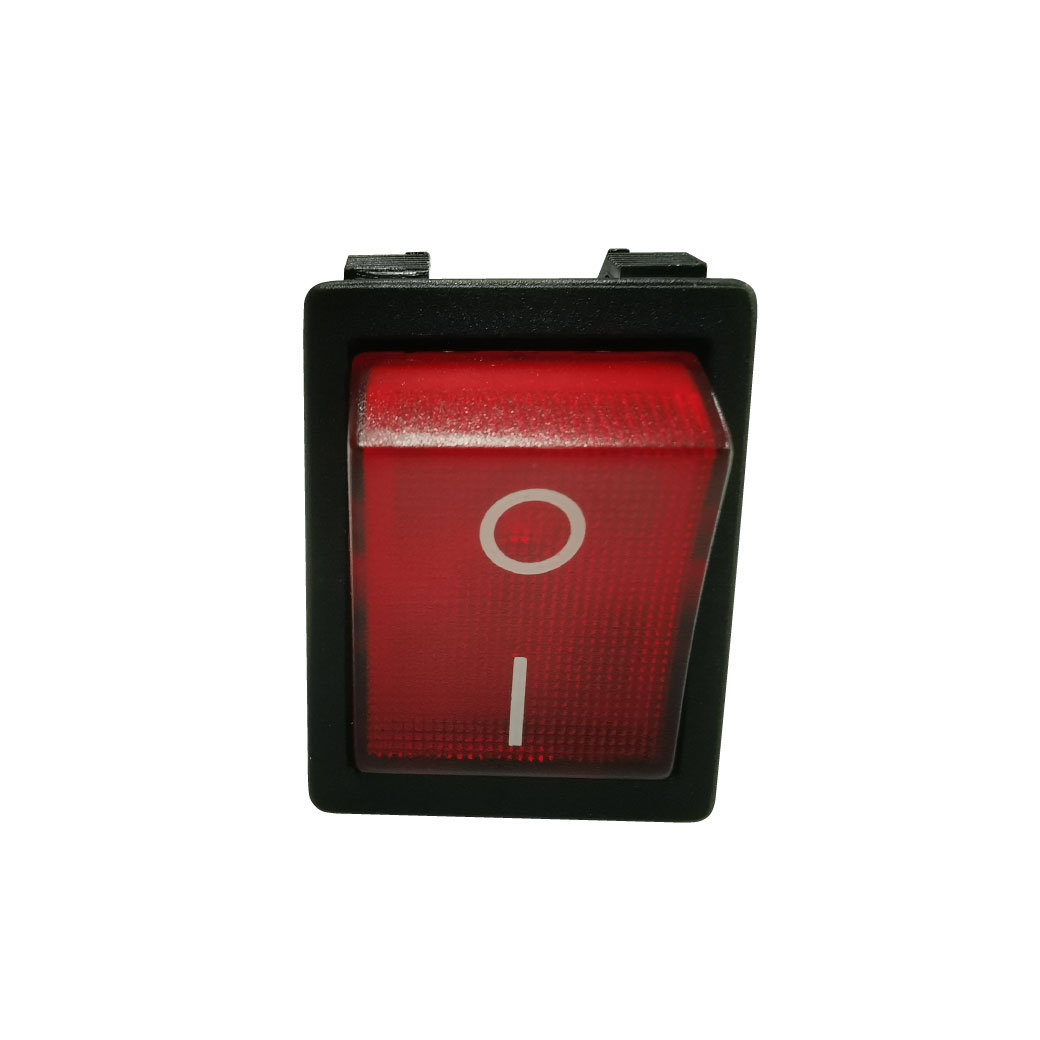

Rocker Switch R5 Series

Product Specification

• Mounting Type : Panal Mount
• Circuit : DPST
• Switch Function : ON/OFF
• Contact Rating / Voltage : 16A250VAC
• Series : R5
• Actuator Color : Red
• Illumination Color : Red
• Contact Tremination : Tab Terminals
• Lamp Function : with Lamp

Specification

• Electrical Rating : 16A250VAC (UL)(VDE)
• Mechanical life : Over 30000 Cycles
• Electrical life : Over 10000 Cycles
• Contact resistance : < 20m Ohms.
• Insulation resistance : > 1000M Ohms.
• High Voltage resistance : > 1500V 1 min.
• Ambient temperature : Teminal side -20 to +85 ํC
•                                   Actuating side -20 to +55 ํC
• Storage temperature : -30 to +80 ํC Max
• Atmospheric huminity : Max.85%
• Actuating force : 4-8N(depents on dififerent switch function)
• Flammability : UL94 V-2
• Temperature rise at the terminal : Max 30 ํC (UL1054)
• Solder ability of terminal : Max 350 ํC.3s
